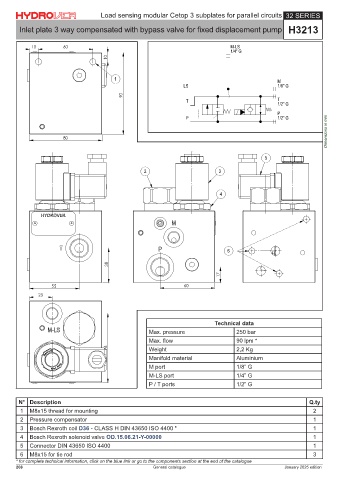

Load sensing modular Cetop 3 subplates for parallel circuits 32 SERIES

Inlet plate 3 way compensated with bypass valve for fixed displacement pump H3213

10 60 M-LS
1/4" G
10

1 M
LS 1/8" G
90
T T
1/2" G
P
P 1/2" G
Dimensions in mm

80

5

2 3

4

6

38

17
55 60
25

Technical data
Max. pressure 250 bar
Max. flow 90 lpm *
76 Weight 2,2 Kg
Manifold material Aluminium
M port 1/8” G
M-LS port 1/4” G
P / T ports 1/2” G

N° Description Q.ty
1 M8x15 thread for mounting 2
2 Pressure compensator 1
3 Bosch Rexroth coil D36 - CLASS H DIN 43650 ISO 4400 * 1
4 Bosch Rexroth solenoid valve OD.15.06.21-Y-00000 1
5 Connector DIN 43650 ISO 4400 1
6 M8x15 for tie rod 3
* for complete technical information, click on the blue link or go to the components section at the end of the catalogue
