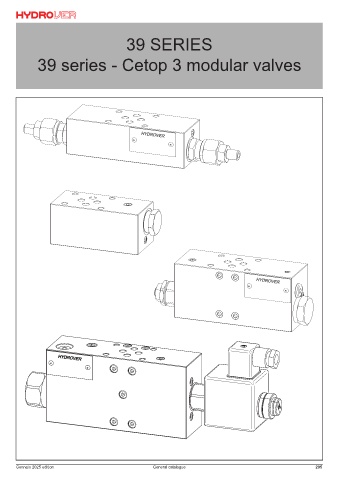

Cetop 3 modular valves 39 SERIES

H3904
Ordering code

H 3 9 0 4 A - _ _ - _ _

Hydrover product Relief valve
adjustment pressure range
on B *
Product series 0 = 5-50 bar
39 series - Cetop 3 modular valves 1 = 30-100 bar
2 = 50-210 bar
3 = 100-350 bar
Product ID

Relief valve
Manifold material adjustment type on B *
Aluminium S = Screw
K = Knob

Relief valve
adjustment pressure range on A *
0 = 5-50 bar
1 = 30-100 bar
2 = 50-210 bar
3 = 100-350 bar

Relief valve
adjustment type on A *
S = Screw
K = Knob

* Omit if not required. To order the product without the pressure relief cartridge valves, omit the pressure range and the
adjustment type options for A and B: H3904A.
The manifold will still be provided with the corrisponding cavities.
