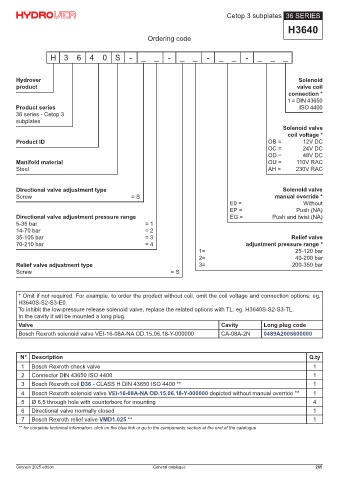

Page 265 - Hydrover-hydraulic-integrated-circuits-catalogue

Cetop 3 subplates 36 SERIES

H3640
Ordering code

H 3 6 4 0 S - _ _ - _ _ - _ _ - _ _ _

Hydrover Solenoid
product valve coil
connection *
1 = DIN 43650
Product series ISO 4400
36 series - Cetop 3
subplates
Solenoid valve
coil voltage *
Product ID OB = 12V DC
OC = 24V DC
OD = 48V DC
Manifold material OU = 110V RAC
Steel AH = 230V RAC

Directional valve adjustment type Solenoid valve
Screw = S manual override *
E0 = Without
EP = Push (NA)
Directional valve adjustment pressure range EG = Push and twist (NA)
5-35 bar = 1
14-70 bar = 2
35-105 bar = 3 Relief valve
70-210 bar = 4 adjustment pressure range *
1= 25-120 bar
2= 40-200 bar
Relief valve adjustment type 3= 200-350 bar
Screw = S

* Omit if not required. For example, to order the product without coil, omit the coil voltage and connection options: eg.
H3640S-S2-S3-E0.
To inhibit the low-pressure release solenoid valve, replace the related options with TL: eg. H3640S-S2-S3-TL.
In the cavity it will be mounted a long plug.
Valve Cavity Long plug code
Bosch Rexroth solenoid valve VEI-16-08A-NA OD.15.06.18-Y-000000 CA-08A-2N 0489A2005600000

N° Description Q.ty

1 Bosch Rexroth check valve 1
2 Connector DIN 43650 ISO 4400 1
3 Bosch Rexroth coil D36 - CLASS H DIN 43650 ISO 4400 ** 1
4 Bosch Rexroth solenoid valve VEI-16-08A-NA OD.15.06.18-Y-000000 depicted without manual override ** 1
5 Ø 6,5 through hole with counterbore for mounting 4
6 Directional valve normally closed 1
7 Bosch Rexroth relief valve VMD1.025 ** 1
** for complete technical information, click on the blue link or go to the components section at the end of the catalogue
