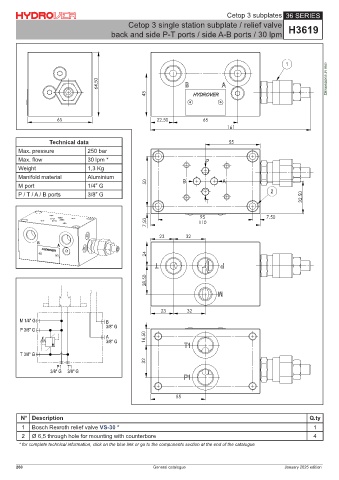

Cetop 3 subplates 36 SERIES
Cetop 3 single station subplate / relief valve
back and side P-T ports / side A-B ports / 30 lpm H3619

1

64,50 Dimensions in mm

43

65 22,50 65
161

Technical data 55
Max. pressure 250 bar
Max. flow 30 lpm * P
Weight 1,3 Kg
Manifold material Aluminium B A
M port 1/4” G 50
P / T / A / B ports 3/8” G 2 32,50
T

95 7,50
7,50 110

23 32

24

28,50

A B
P T
23 32
M 1/4" G B
P 3/8" G 3/8" G
A 16,50
3/8" G

T 3/8" G
32
P1 T1
3/8" G 3/8" G

55

N° Description Q.ty
1 Bosch Rexroth relief valve VS-30 * 1
2 Ø 6,5 through hole for mounting with counterbore 4
* for complete technical information, click on the blue link or go to the components section at the end of the catalogue
