RE 18325-90/07.13 Bosch Rexroth Oil Control S.p.A. 11/16

Coils - Connectors

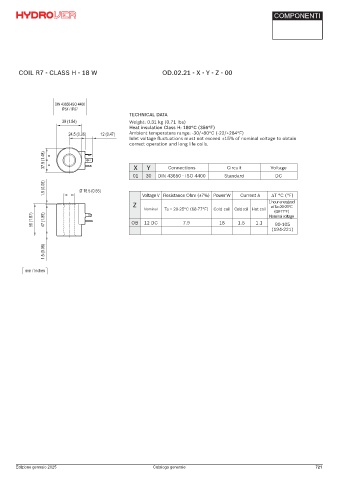

COIL R7 - CLASS H - 18 W OD.02.21 - X - Y - Z - 00

TECHNICAL DATA
Weight: 0.31 kg (0.71 lbs)
Heat insulation Class H: 180°C (356°F)
Ambient temperature range: -30/+80°C (-22/+284°F)
Inlet voltage fluctuations must not exceed ±15% of nominal voltage to obtain
correct operation and long life coils.

X Y Connections Circuit Voltage
01 30 DIN 43650 - ISO 4400 Standard DC

Voltage V Resistance Ohm (±7%) Power W Current A ∆T °C (°F)
Z 1 hour energized
at Ta=20-25°C
Nominal Ta = 20-25°C (68-77°F) Cold coil Cold coil Hot coil
(68-77°F)
Nominal voltage
OB 12 DC 7.9 18 1.5 1.1 90-105
(194-221)

Preferred types (readily available)

Type Material number Type Material number
OD02210130OB00 R934001302

Further types available by request
