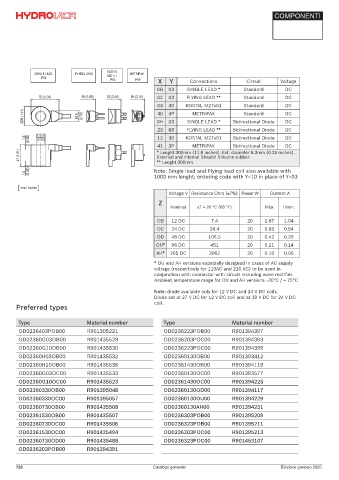

RE 18325-90/06.17 Bosch Rexroth Oil Control S.p.A. COMPONENTI

Coils - Connectors

X Y Connections Circuit Voltage
0G 03 SINGLE LEAD * Standard DC
02 03 FLYING LEAD ** Standard DC
03 30 KOSTAL M27x01 Standard DC
40 3P METRIPAK Standard DC
0H 03 SINGLE LEAD * Bidirectional Diode DC
23 03 FLYING LEAD ** Bidirectional Diode DC
12 30 KOSTAL M27x01 Bidirectional Diode DC
41 3P METRIPAK Bidirectional Diode DC
* Lenght 300mm (11.8 inches). Ext. diameter 6.3mm (0.25 inches).
External and internal Shealth Silicone rubber.
** Lenght 300mm
Note: Single lead and Flying lead coil also available with
1000 mm lenght; ordering code with Y=10 in place of Y=03

Voltage V Resistance Ohm (±7%) Power W Current A
Z
Nominal aT = 20 °C (68 °F) I Max. I Nom.

OB 12 DC 7.4 20 1.67 1.04
OC 24 DC 28.4 20 0.83 0.54
OD 48 DC 106.5 20 0.42 0.29
OU* 96 DC 451 20 0.21 0.14
AH* 205 DC 2062 20 0.10 0.06
* OU and AH versions especially designed in cases of AC supply
voltage (respectively for 110AC and 220 AC) to be used in
conjunction with connector with circuit including wave rectifier.
Ambient temperature range for OU and AH versions: -30°C / + 75°C
Note: diode available only for 12 V DC and 24 V DC coils.
Diode set at 27 V DC for 12 V DC coil and at 39 V DC for 24 V DC
coil.
Preferred types

Type Material number Type Material number
OD0236403POB00 R901395221 OD0236223POB00 R901394397
OD02360G03OB00 R901435529 OD0236203POC00 R901394393
OD02360G10OB00 R901435530 OD0236223POC00 R901394399
OD02360H03OB00 R901435532 OD02360130OB00 R901393412
OD02360H10OB00 R901435536 OD02361430OB00 R901394119
OD02360G03OC00 R901435533 OD02360130OC00 R901393577
OD02360G10OC00 R901435523 OD02361430OC00 R901394225
OD02360330OB00 R901395048 OD02360130OD00 R901394117
OD02360330OC00 R901395057 OD02360130OU00 R901394229
OD02360730OB00 R901435508 OD02360130AH00 R901394231
OD02361530OB00 R901435507 OD0236303POB00 R901395209
OD02360730OC00 R901435506 OD0236323POB00 R901395211
OD02361530OC00 R901435494 OD0236303POC00 R901395213
OD02360730OD00 R901435488 OD0236323POC00 R901453107
OD0236203POB00 R901394391
Further types available by request
