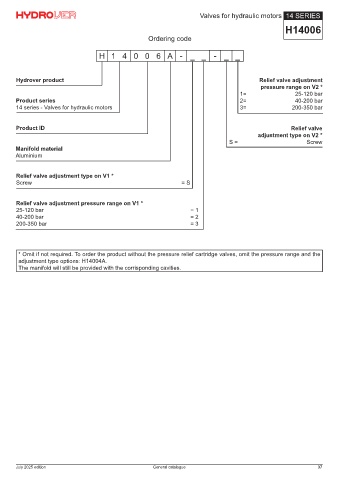

P. 37

Valves for hydraulic motors 14 SERIES

                                                                                                     H14006
                                                     Ordering code


                                    H 1 4 0 0 6 A - _ _ - _ _




       Hydrover product                                                                     Relief valve adjustment
                                                                                             pressure range on V2 *
                                                                                     1=                  25-120 bar
       Product series                                                                2=                  40-200 bar
       14 series - Valves for hydraulic motors                                       3=                 200-350 bar


       Product ID                                                                                      Relief valve
                                                                                            adjustment type on V2 *
                                                                                  S =                        Screw
       Manifold material
       Aluminium



       Relief valve adjustment type on V1 *
       Screw                                                     = S



       Relief valve adjustment pressure range on V1 *
       25-120 bar                                                   = 1
       40-200 bar                                                   = 2
       200-350 bar                                                  = 3





       * Omit if not required. To order the product without the pressure relief cartridge valves, omit the pressure range and the
       adjustment type options: H14004A.
       The manifold will still be provided with the corrisponding cavities.










































       September 2023 edition                          General catalogue                                         37
