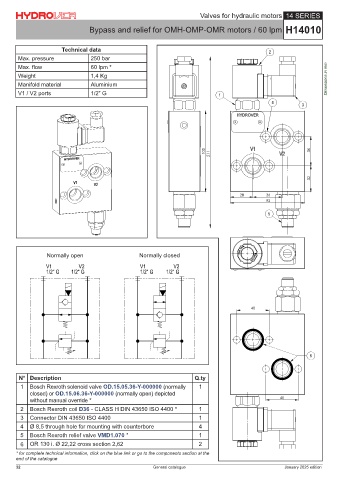

Valves for hydraulic motors 14 SERIES

Bypass and relief for OMH-OMP-OMR motors / 60 lpm H14010

Technical data 2
Max. pressure 250 bar
Max. flow 60 lpm *
Weight 1,4 Kg Dimensions in mm
Manifold material Aluminium
V1 / V2 ports 1/2” G 1
4
3

100 211 36

32

28 36
92

5

Normally open Normally closed

V1 V2 V1 V2
1/2" G 1/2" G 1/2" G 1/2" G

40

6

N° Description Q.ty
1 Bosch Rexroth solenoid valve OD.15.05.36-Y-000000 (normally 1
closed) or OD.15.06.36-Y-000000 (normally open) depicted
without manual override * 40
2 Bosch Rexroth coil D36 - CLASS H DIN 43650 ISO 4400 * 1
3 Connector DIN 43650 ISO 4400 1
4 Ø 8,5 through hole for mounting with counterbore 4
5 Bosch Rexroth relief valve VMD1.070 * 1
6 OR 130 i. Ø 22,22 cross section 2,62 2

* for complete technical information, click on the blue link or go to the components section at the
end of the catalogue
