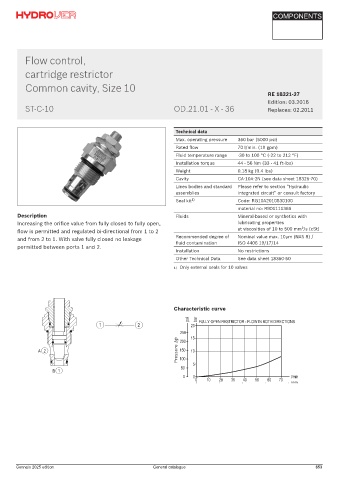

Page 653 - Hydrover-hydraulic-integrated-circuits-catalogue

COMPONENTS

ST-C-10

Flow control,

cartridge restrictor

Common cavity, Size 10
RE 18321-27
Edition: 03.2016
ST-C-10 OD.21.01 - X - 36 Replaces: 02.2011

Technical data
Max. operating pressure 350 bar (5000 psi)
Rated flow 70 l/min. (19 gpm)
Fluid temperature range -30 to 100 °C (-22 to 212 °F)
Installation torque 44 - 56 Nm (33 - 41 ft-lbs)
Weight 0.18 kg (0.4 lbs)
Cavity CA-10A-2N (see data sheet 18325-70)
Lines bodies and standard Please refer to section “Hydraulic
assemblies integrated circuit” or consult factory
Seal kit 1) Code: RG10A2010530100
material no: R901111366
Description Fluids Mineral-based or synthetics with
Increasing the orifice value from fully closed to fully open, lubricating properties
2
flow is permitted and regulated bi-directional from 1 to 2 at viscosities of 10 to 500 mm /s (cSt)
and from 2 to 1. With valve fully closed no leakage Recommended degree of Nominal value max. 10µm (NAS 8) /
ISO 4406 19/17/14
fluid contamination
permitted between ports 1 and 2.
Installation No restrictions
Other Technical Data See data sheet 18350-50
1) Only external seals for 10 valves

Characteristic curve

Pressure Δp

Flow Q

RE 18321-27/03.2016, Bosch Rexroth Oil Control S.p.A.

Gennaio 2025 edition General catalogue 653
