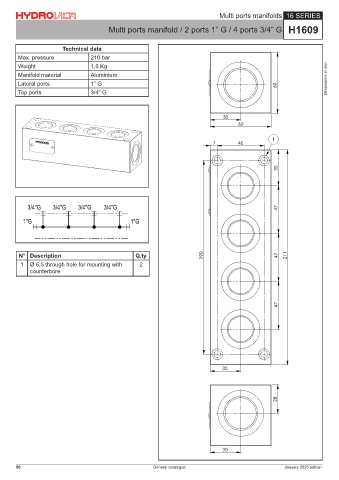

Multi ports manifolds 16 SERIES

                                       Multi ports manifold / 2 ports 1” G / 4 ports 3/4” G           H1609



                       Technical data
        Max. pressure            210 bar
        Weight                   1,6 Kg
        Manifold material        Aluminium
        Lateral ports            1” G                                                              60               Dimensions in mm
        Top ports                3/4” G




                                                                                30
                                                                                     60


                                                                                                 1
                                                                            7        46



                                                                                                   35






           3/4"G    3/4"G    3/4"G    3/4"G                                                        47


         1"G                                   1"G





        N° Description                           Q.ty                    190                       47    211
        1   Ø 6,5 through hole for mounting with   2
            counterbore





                                                                                                   47












                                                                                30





                                                                                                   28









                                                                                30
