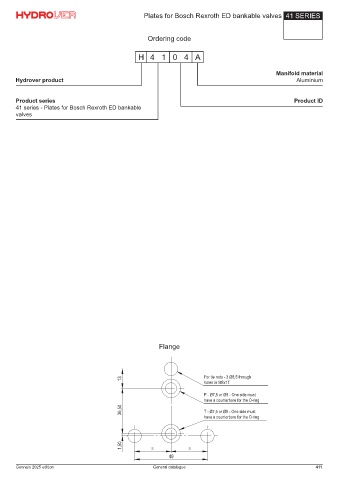

Plates for Bosch Rexroth ED bankable valves 41 SERIES

Ordering code

H 4 1 0 4 A

Manifold material
Hydrover product Aluminium

Product series Product ID
41 series - Plates for Bosch Rexroth ED bankable
valves

Flange

13 For tie rods - 3 Ø8,5 through
holes or M8x17

P - Ø7,5 or Ø9 - One side must
have a counterbore for the O-ring
30,50 T - Ø7,5 or Ø9 - One side must

have a counterbore for the O-ring

1,50 = =

49

Gennaio 2025 edition General catalogue 411
