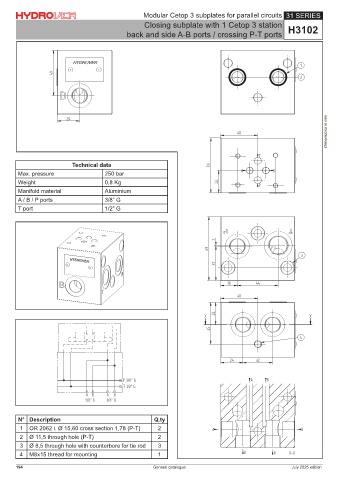

Modular Cetop 3 subplates for parallel circuits 31 SERIES

Assembling kit HK

Ordering code for assemblies with 1 to 3 intermediate/closing subplates

H K V M 8 X _ _ _ - 3

Screw quantity
Hydrover product 3

Product type Screw length for intermediate/closing
Kit subplates quantity
060 = 1 subplate
110 = 2 subplates Dimensions in mm
Kit type 160 = 3 subplates
Viti

Thread
M8

Ordering code for assemblies with 4 to 9 intermediate/closing subplates

H K T M 8 X _ _ _ _ _ - 3

Tie rods quantity
Hydrover product 3

Product type Nut type *
Kit DS = standard nut
DL = long nut (only for H3102)

Kit type
Tie rods Tie rods length
for intermediate/closing subplates quantity
225 = 4 subplates
Thread 268 = 5 subplates
M8 318 = 6 subplates
366 = 7 subplates
415 = 8 subplates
465 = 9 subplates
